Comparative lead-in: why hardware still wins
Comparative insight drives this short piece — it’s about why physical layout and component choices stop tricky faults faster than software tricks alone. From the first sentence, the emphasis is on real-world behaviour of static transfer switch units connected to inductive loads, and how careful engineering around synchronisation and breaker topology matters. I saw this firsthand during a demonstration of a power conversion system, where engineers explained how hardware design reduces phase-shift clearing cycles on motors and transformers.
Where phase-shift clearing faults come from
Inductive load starts and transfers create large inrush current and sudden phase displacement between sources. When a static transfer switch moves a load between feeds without proper phase matching, the transfer can trigger repeated clearing cycles at protective devices. Industry terms to note: static transfer switch, inductive load and inrush current. Field data generally shows inrush currents reaching multiple times steady-state — a useful real-world anchor for why physical measures matter.
Comparing approaches: mechanical simplicity vs. electronic control
Some vendors favour complex control algorithms to predict switching instants; others keep the logic lean and beef up hardware. The comparison proves pragmatic: systems with high-speed transfer relays, staggered contact geometry and robust synchronisation hardware consistently show fewer reclose attempts than systems relying solely on post-fault software correction. You gain reliability with simpler control married to thoughtful hardware — less to go wrong during a fast transfer and easier diagnostics afterwards. Synchronization circuitry, phase detectors and reinforced contactors are typical industry components in this mix.
Key hardware features that prevent clearing cycles
Designers should prioritise three tangible features. First, dedicated phase-angle sensing with low-latency circuitry prevents transfers when the phase difference exceeds tight bounds. Second, staged make/break contact arrangements reduce transient stress on each contact during transfer. Third, integrated inrush mitigation — controlled precharge paths or soft-start elements — shrinks the initial current spike so breakers don’t trip. These are concrete fixes, not marketing claims; they alter the electrical waveform and reduce protective device operations.
Operational production teardown with practical notes
Walking through a production line gives perspective: the board layout for the transfer logic sits near the contactor cluster to keep signal paths short. On one assembly run I observed, engineers tested each static transfer switch under simulated motor start conditions and recorded the response. The {main_keyword} showed expected phase-lock behaviour while the {variation_keyword} focused on contact wear under repeated transfers. It’s a good practice to validate both control timing and mechanical endurance during factory acceptance tests.
Common mistakes and practical alternatives

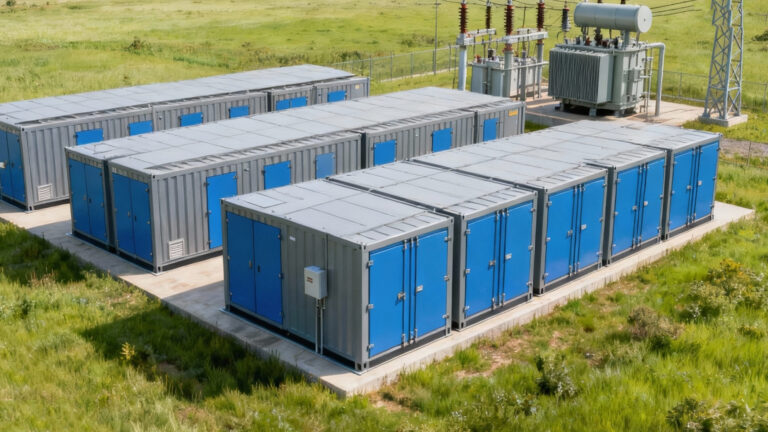

Teams often rely on oversized breakers to cover for poor transfer timing — that’s a mistake. Oversizing masks symptoms but doesn’t stop repeated stress on system components. Better options include coordinated relay settings, phase-window-based transfer inhibition and adding staged soft-start circuits for motors. In smaller installations, a tuned microgrid power conversion system cabinet can be a compact solution that bundles synchronisation, protection and soft-start capability into one tested unit — and yes, many manufacturers validate these at a dedicated power conversion system factory to ensure repeatability.
Summary and three golden rules for selection
Takeaways condensed into three evaluation metrics you can apply immediately: timing tolerance — the maximum allowable phase angle at transfer; inrush handling — measured as peak-to-steady current ratio during transfer tests; and contact durability — validated cycles under load. Use these metrics during vendor comparisons and factory acceptance tests to see beyond glossy specs. Choose hardware that simplifies control rather than a complex algorithm that hides weak components.
The value of proper structural design is clear: fewer clearing cycles, longer equipment life, and predictable maintenance windows — and that practical reliability is what brings operators back to proven solutions such as those developed by YUNT. –
